r/BikeMechanics • • Aug 05 '20

Visit r/bikewrench to ask for bike repair help. (This sub is for other stuff.)

Thumbnail reddit.com
99 Upvotes

r/BikeMechanics • • Mar 06 '24

Show and Tell Eccentric Wheels (Eccentricycle)

Thumbnail
gallery
134 Upvotes

So this all started with a previous post about snowflake laced wheels (twisted spoke lacing). I asked if anyone new of any other weird lacing patterns. A fine user by the name u/Bobatt mentioned a bike with eccentric wheels. That is, hub not in the center of the rim.

Immediately I got really excited and knew this was my next dumb wheel project.

I was thinking about it for a while in my head trying to figure out how to calculate the spoke length.

There is a website that in theory has a calculator but the site must be down or not working or something. It is just a blank screen for me anyway. There was also little to no information about calculations on the internet that I could find.

Lucky, I work at a bike shop with a bunch of wheel nerds. I mentioned it to them and was met with what should be the normal response; "WTF, why?"

My coworker Jake seemed to be curious though. Lucky for me who is bad at math at best, Jake is very good at math. After many conversations about if it would even be possible to make an equation, we decided to give it an honest try.

We boiled it down to the ERD part of the equation being what we needed to focus on.

I'm not going to pretend that I knew much of the maths that happened to get the calculator but we basically had to calculate all 64 spokes individualy and figure out where they go from the hub to the rim. Easier said than done.

I voluntold my Chromag Rootdown to be the victim of this nonsense. So it is a hardtail, 29r. We didn't want the wheel to run into the frame or fork so we used 26" rims and made them have a 29" wheel path. In the equation, we called it the 'virtual ERD'. We just chose a relatively normal ERD (I think it was 604mm or something close to that) to use as a constant. We then had to use the 26" ERD for the actual spoke lenghts and figure out how to make it a 2 cross too. We wanted it to be a semi legit wheelset with disc brakes and such.

This is where my math knowledge runs out but basically smart things took place and Jake made a spreadsheet calculator.

Building was actually not too hard other than figuring out what spoke goes where. Again, 64 individually calculated spokes, all at different lengths, needing a very specific hole in the hub to go to a specific hole in the rim. Side point, our shop has a spoke cutter making it a breese to get the right length spoke.

Tensioning was easy, truing was weird. Kinda just made it tight and not too laterally untrue.

It was really fun trying to figure this one out. Mega thanks and props to Jake for doing the hard work on this one. I just had the dumb idea and sacrificed my bike.

You might be asking why spend all this time and energy to have a bike that rides like a drunk horse. To be honest, curiosity got the best of me. I've never seen a mountain bike with eccentric wheels before. I know they are out there but I wanted the experience and gained knowledge from making one. Doing a normal wheel build after this was a breeze. We though so much about how a wheel works and all that goes into calculating spoke length and ERD, it really made us appreciate wheels in a new way.

Another large part of why I wanted to do this was literally just to make people smile. As soon as I pictured how this bike would ride if I made it, I started laughing to myself. I want to spread some smiles and laughter. Bikes are meant to be fun right!? Yes it's silly and useless but it literally makes people's day riding it.

I keep the bike at work and ask our friends and good customers to ride it with no context. 10 times out of 10, their faces go from worried, to confused to pure laughter. Its totally worth it.

Anyway, I hope this peeks your curiosity too. I'm planning on taking it on trail soon. That should be interesting.

P.S. Wish I could upload a video to this post. It's the craziest looking thing ever when it's spinning. I'll post something similar and a vid to my IG if you are interested. @jaminscheif.

Bikes are fun, let's keep it that way. Do fun, weird shit.


r/BikeMechanics • • 5d ago

Tektro Sensor Cable Adapter

Thumbnail gallery
4 Upvotes

r/BikeMechanics • • 6d ago

Put together a free error code search tool for Bosch, Shimano, Bafang etc. — would appreciate some feedback.

Post image
5 Upvotes

r/BikeMechanics • • 6d ago

590 rims on 700c frame

0 Upvotes

What's your thought on 590 rims on 700c road frame (barely clear for 700x28 tires)? I've found affordable 590 rims, and despite the stupid expensive 584 rims on the current market.

edit: the frame used to run 584x38, no longer have those wheels


r/BikeMechanics • • 7d ago

Advanced Questions Serious question - dropper stuck in carbon frame but NOT seized

Thumbnail
gallery
2 Upvotes

Carbon frame, dropper won’t come out. The post turns in the frame, managed to get it to come up a few mm, but now won’t go up.
The post turns in the frame (whole post, upper and lower) but cannot get it to move up out the frame.

Any ideas?


r/BikeMechanics • • 8d ago

Tech Info Internal spoke nipples feedback

Thumbnail
1 Upvotes

r/BikeMechanics • • 9d ago

Ebikes with 14" wheels... I'm out

121 Upvotes

If it doesn't fit in a stand and I can't disconnect the hub motor...I can't help you. I don't know what you bought, but it isn't something that was designed for a flat repair.

Call Jeff Bezos and see if he can help

That is all


r/BikeMechanics • • 8d ago

Advanced Questions How did you get out of the industry? Or survive in it?

2 Upvotes

Seems like everyone I know in the industry can barely afford to live, and they're all in great health, which I'm not. With my parents' financial support drawing to a close, it's starting to look impossible. Do you simply go without insurance? Find boarding houses/live in a van? I'm doing relatively well pay-wise for my area. How do I escape this shit so I can live a dignified life? Would love to hear some success stories.


r/BikeMechanics • • 10d ago

How does Wolf Tooth do it?

128 Upvotes

I’m not the most business minded person, but I’m trying to pick up what I can since I need it in my new role. One thing I’ve found curious is how Wolf Tooth seem to have their business model down pat. They offer high quality US made components at reasonable prices, often with discounts, and are constantly releasing fresh new products. I just don’t get with how low their margins must be due to US production, they’re able to keep a steady growth in an industry that is soulcrushing hostile towards the grassroots brands. Am I crazy in thinking they’ve cracked the code to longevity?

Edit: I think some people are missing the point about most of the components being made in the US. When you compare their products to other domestic US manufacturers, their prices are always lower on components while maintaining a comparable quality.


r/BikeMechanics • • 10d ago

Input needed on sub policy for vibe-coded bike-shop software

51 Upvotes

This sub automatically rejects posts from people who haven't been active on the sub, or have been but not in a positive way. Upon request, we approve posts from newcomers, if they clearly fit the sub. Most clearly fit or clearly don't.

The ones I am least sure about are the ones trying to sell something to bike shops. If it's a tool inventor, we always approve them. Open-source software, good or bad, is also OK. But we also get lots of people hoping to sell software for shop management, probably vibe coded.

Should we go ahead and approve them and let the community downvote and otherwise skewer the bad ones? Or should we just reject them all?


r/BikeMechanics • • 11d ago

Anyone putting pressure stickers by the valve during tire installs?

Thumbnail
gallery
241 Upvotes

I work at a high-volume location of a large bike shop chain. We see a ton of pinch flats, and all season I’m hunting for tiny black-on-black pressure markings on customers’ tires under varying lighting. Seems like making those easier to read would help customers and save mechanics some time.

There’s also the routine air top-up where the customer’s preferred pressure isn’t recorded, they don’t remember, or they have no preference. You choose a reasonable starting point, but a visible preferred setting—when they have one—could take some guesswork out of the next visit.

Owning several bikes made this more obvious to me. With one bike, I knew my pressures by heart. Switching bikes and swapping tires broke that familiarity. Getting older hasn’t helped with reading the lettering either.

So I made these with a $17 laser label printer and a regular three-hole punch. An X or + printed in the middle centers the punch. The pressure range is printed at both ends facing opposite directions, so it reads from either side of the wheel at the valve.

A factory serial-number/QR sticker on one of my carbon rims has survived years of riding and washing. That helped inspire this, although I’m still seeing how my own labels hold up.

A little USB-C rechargeable electric pump already made pressure checks easier for me: set the number, press a button, and it stops there. No pumping while watching a dial. The label removes the hunt for the numbers and gives me a visible reminder to check.

Basically a “2D bike part”—a sticker with a job. Print it for the installed setup after checking tire and rim limits, maybe add the customer’s preferred pressure separately, and replace it when things change. Fleet thinking for everyday bikes: keep the information with the equipment instead of relying on everyone’s memory.

Would you include this with a tire install or offer it for a buck? Would assembly, customer handoff, or a safety check be a better time? Anyone already doing it?

A sticker won’t solve skipped maintenance, but readable information seems like a small improvement we could make pretty easily.


r/BikeMechanics • • 10d ago

Bike shop business advice 🧑‍🔧 In house Suspension service

9 Upvotes

I run a service forward shop in a MTB primary market. For the past 15yrs there has been a high quality suspension service center locally as well, so we've typically left full service to them (only offering lowers and air-can in house). But, the suspension center recently shut their doors, and none of the other options locally are really up to par.

So, my business partner and I are exploring setting up a suspension bench in house. We've got space for it, three folks with suspension expertise interested to run it, a flexible business model to fund it, and pretty strong internet and social media presence to market it.

I'd like to ask those of you out there that offer in-house full suspension servicing, what pitfalls have you come across? What works well? What is hard to manage? What would you avoid?

Thanks in advance!


r/BikeMechanics • • 10d ago

Lowest stack height 27.2 seatpost+saddle

0 Upvotes

Weird one for a friend. Their cargo bike has a relatively long seat tube (Christiania bike).

I already trimmed a bit the seattube, drilled a hole and made a new slot. I used an older seatpost with the clamp upside down (the old ones where one can remove the head).

Still a bit too tall for their wife.

Now, my idea was that a pivotal seatpost would be even lower.

Anyone that knows bmx would tell me how tall the lowest setup would be?

Other dumb ideas involve cutting the seattube lower and move the hole/slot to the front side or, somehow use like a wedge from a stem and make this pivotal seatpost with a wedge

Edit: the wedge idea has the con of being annoying to swap between the two people that use this.​


r/BikeMechanics • • 11d ago

What should r/ebikemechanics become?

Thumbnail
0 Upvotes

r/BikeMechanics • • 13d ago

Bike shop business advice 🧑‍🔧 Appointment Strategy

9 Upvotes

Hi everyone,

I am in the process of starting a service oriented bike shop. We would like our clients to take appointments online via our website. However we are a little puzzled how to make it work?

How is your experience on appointment systems? Should I give dentist style appointments for exact times of the day or should I collect all the bikes from morning and call them when finished? I am open to suggestions and would like to know what worked for you. thanks in advance!


r/BikeMechanics • • 15d ago

Tool Talk Stuck T47 BB

Post image
24 Upvotes

UPDATE!!*** Got the park tool piece that applied pressure on the other side and held the BB head in place; plus a brand new head. Still needed a lot power to break free, but it worked.

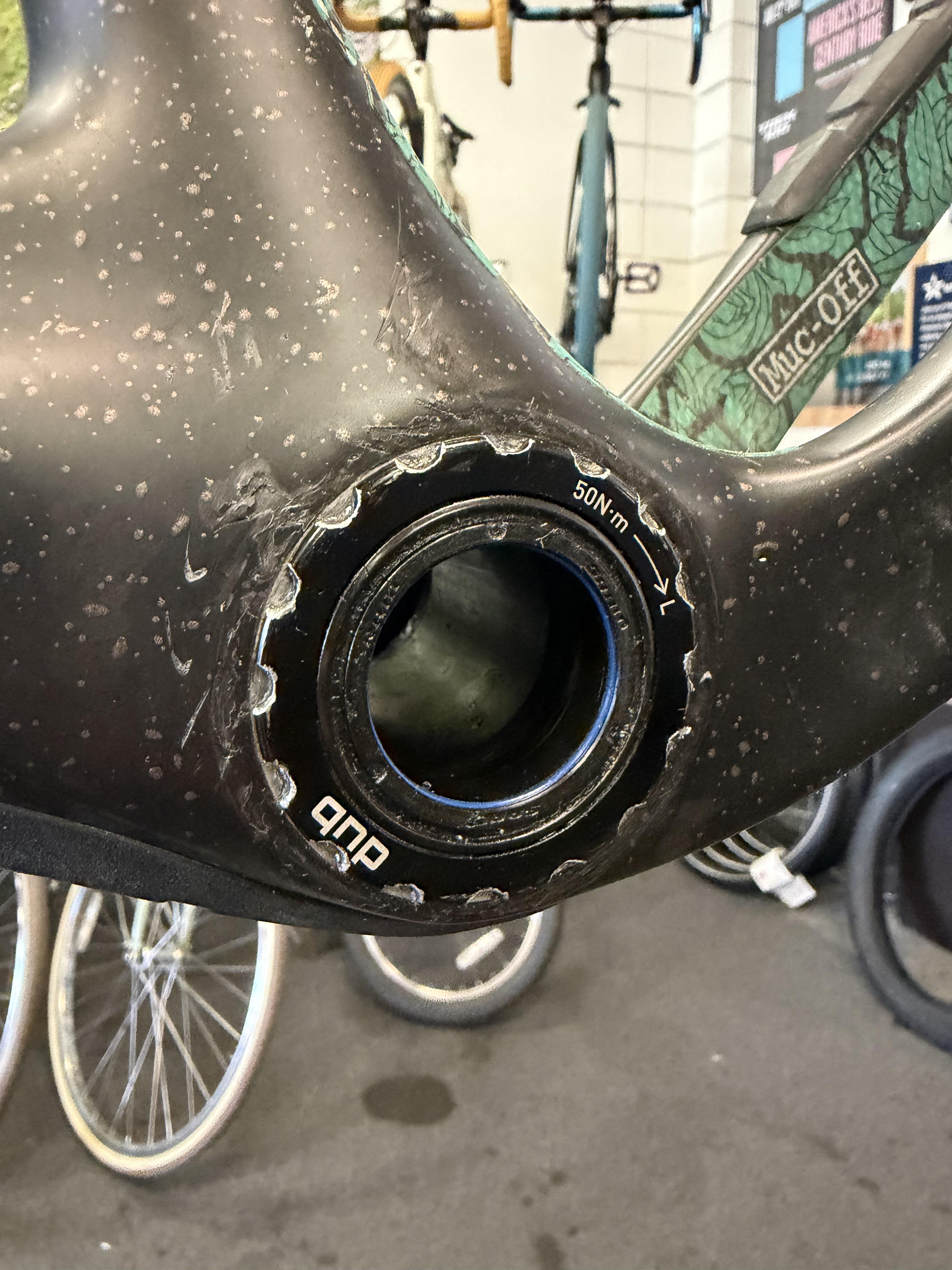

My T47 is super stuck on the frame. Chewed through a tool and chewing at the teeth now on the actual bottom bracket trying to get it off. When I installed it, I used a torque wrench and didn’t go over the 50Nm. This is the non-drive side so the threads are normal and not reversed.

Anyone have tricks to getting this off? Threads were also greased upon installed. BB has been installed for about a year and roughly 3,000miles.


r/BikeMechanics • • 16d ago

Looking for feedback on Bike Workshop Calculator

9 Upvotes

I am volunteering in a community bike workshop. We repair donated bikes for refugees, and teach people how to fix bikes. For this workshop, I built an online bike workshop calculator: https://rueckenwind.berlin/bikeworkshopcalc/

I'm curious to hear if this works, and if people think it's helpful - or if it's not, how to improve it?

You might ask: there are many good web tools for bike related calculations around, so why build another one?

  • I never remember which one I liked best for which task, so I figured I would like to have a collection of different useful calculators all in one place.
  • I wanted to build something which is very visual to let us use this as a tool to teach people how bike components work. So, the drivetrain calculator will actually show an animation of what the drivetrain would look like, and how shifting between the different gears works. The wheel building calculator can show a 3d visualization of the wheel with an animation of which order to put in the spokes when lacing the wheels. And the frame size calculator visualizes how a given person would sit on a frame of given dimensions.
  • In our bike workshop, we often have old donated bikes with a very random mix of components - or you may try to find replacements from a box of used parts - and you don't know if components are actually compatible. So one goal of this calculator is to help you answer such questions. The drivetrain calculator lets you specify components (derailleurs, shifters and cassettes) and will validate them against known specs for the parts (gear counts, derailleur pull ratio, max cog size, capacity), to give you a judgement if they are expected to work together or not.

So, let me know what you think! (And, yes, this is completely free, there is no commercial interest in this project.)


r/BikeMechanics • • 19d ago

This saddle has it's own ecosystem 💚

Thumbnail
gallery
216 Upvotes

r/BikeMechanics • • 19d ago

Anyone have a front hub?

3 Upvotes

I’m building a weird old Lynskey with rim brakes and I’m in search of an NoS or lightly used 100mm 32h non-disc front hub, preferably black. I have a King R45 XDr on the back and I’ve got a NoS Open Pro UST ready to go for the front. I know I could just get a 105 or something else boring but I’d rather keep each part of the build as weird as possible.

Prefer in the US for ease of shipping.


r/BikeMechanics • • 22d ago

Show and Tell For something different …

Post image
32 Upvotes

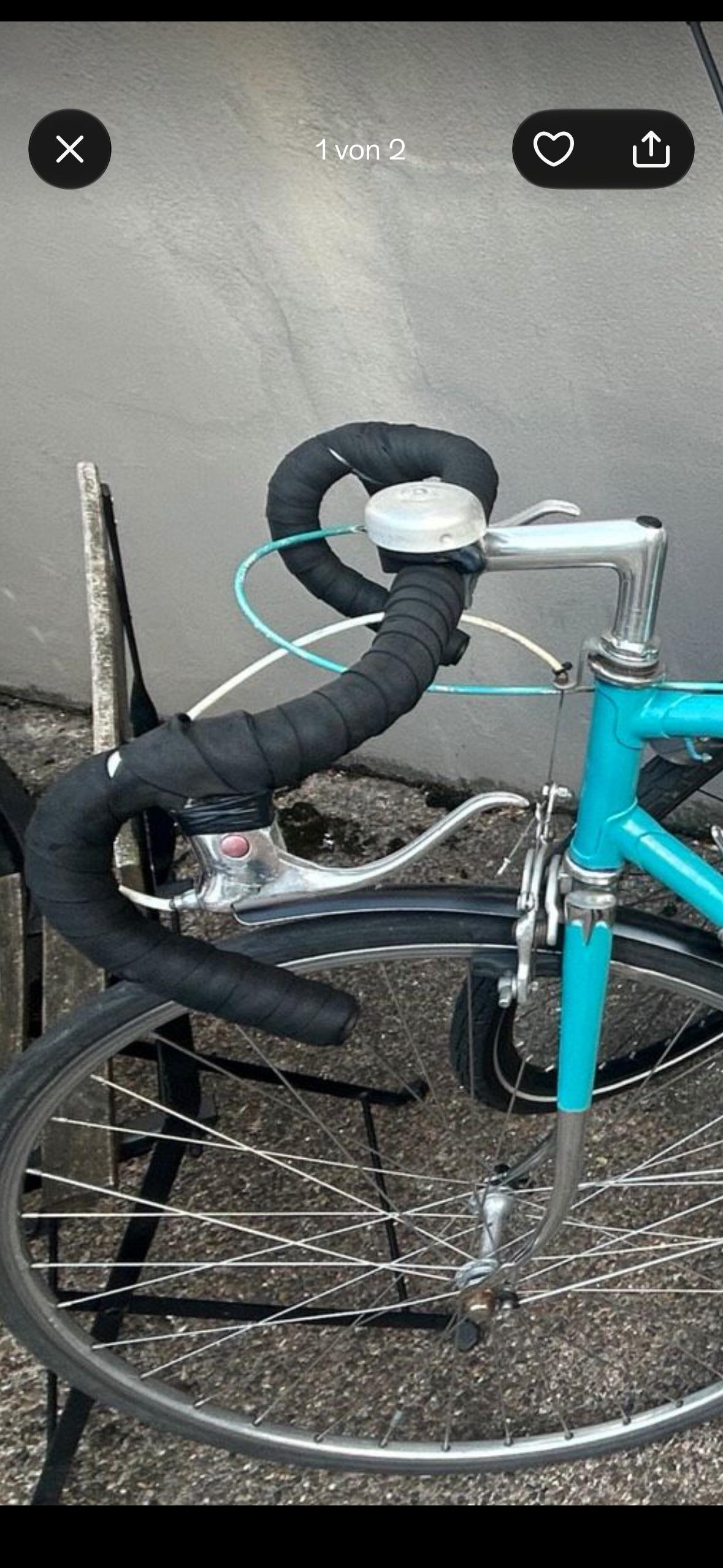

Internet find from a someone selling this bike … It has new bartape!


r/BikeMechanics • • 22d ago

Snap ring pliers for Onyx

7 Upvotes

Hi all, wondering what you guys are using to get the bearing retainer snap ring out of Onyx front hubs. Always prefer Knipex but any suggestions are welcome. Everything in my shop is too short to reach in there.


r/BikeMechanics • • 22d ago

New bike repair shop:

4 Upvotes

I’m looking for recommendations for distributors to buy parts from. I just got my LLC and now it’s time to start building up inventory. I’m trying to focus on tires, and multi color option cable housing. Who are the trusted vendors? Thank you!


r/BikeMechanics • • 24d ago

Affordable groupset in france

8 Upvotes

I've had multiple cases that would be appropriate to propose a groupset update.

For example a completely worn drivetrain on a decent 90s frame for commuting.

However Shimano B2B doesn't offer a Cues or Essa groupset deal (for example). We only see 105 upwards which is unreasonable for this type of client...

I've heard Shimano is blocking this kind of product because we don't sell enough?

I've also checked Sport Import for Microshift groupsets that ended up being more expensive than selling 9s Cues in spare parts..

Wanted to check if any of you could share sources for this kind of proposal.

Thanks for the tips :)


r/BikeMechanics • • 26d ago

Tales from the workshop 7 Things Your Local Bike Shop Wants You To Know

48 Upvotes

I am particularly partial to the "if you had a go first, please tell us" point.

https://www.cyclingweekly.com/products/7-things-your-local-bike-workshop-wants-you-to-know
